Rothenberger ROWELD® P500B, Rothenberger ROWELD® P18B, Rothenberger ROWELD® P630B, Rothenberger ROWELD® P24B

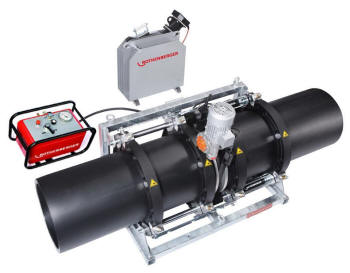

ROTHENBERGER ROWELD® P500B at CMS INDUSTRIAL EQUIPMENT

ROTHENBERGER ROWELD® P500B Plastic Pipe Welding Machine Complete Ø 200mm – 500mm or ROTHENBERGER ROWELD® P18B (18 inch Standard Machine)

Butt fusion machine – field machine for the welding of pipes PE PP and PVDF Ø200 to Ø500 mm. SDR 41 – 7,4 Quick Couplers. 4 PCS. 500 mm. Main Clamp. Hardened piston rods. Weight 190 kg. Plan Planer with reversible knives and safety switch. 1200 W.. Weight 68 kg. Heating element electronic 4000W. Weight 32 kg. Heat-protected box for planer and heating element. Weight 13,3 kg. Hydraulic unit with rotary knob for pressure setting, switch between pressure and depressurized , and handle for driving. Cover for oil filling. 230V 1100 W.. OD 100 mm. glycerin filled pressure gauge. 2 PCS. 230 V socket for wood and mirror. Weight 37,4 kg. Tool – Transport case Optional: Lifting equipment for wood and mirror 450 W. Stub end holder, ROWELD P 500 B Pro is also available with data logger or CNC version.


Description	Diameter	Part Number

ROWELD® Premium P500B 230V 50/60 Hz	200mm - 500mm	55234
ROWELD® P18B Professional 60Hz	8" - 18"	00871
ROWELD® Premium P500B CNC SA 400V	500mm	00565
ROWELD® Electric Hoist for P500B		53410

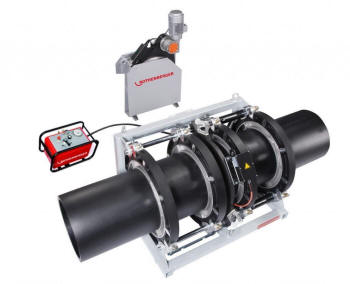

ROTHENBERGER ROWELD® P630B AT CMS INDUSTRIAL EQUIPMENT

ROTHENBERGER ROWELD® P630B Plastic Pipe Welding Machine Complete Ø 315mm – 630mm or ROTHENBERGER ROWELD® P24B (24 inch Standard Machine)

Butt fusion machine – field machine for the welding of pipes PE PP and PVDF Ø315 to Ø630 mm. Quick Couplers. 4 PCS. 630 mm. Main Clamp. Hardened piston rods. Weight 300 kg. Plan Planer with reversible knives and safety switch. 1100 W.. Weight 123 kg. Heating element electronic 400V 8000W. Weight 45 kg. Heat-protected box for planer and heating element. Weight 70 kg. Set Hydraulic-station 1100 IN., including. hoses with quick couplings. Weight 37,4 kg. Tool – Transport case. Optional: Lifting equipment for wood and mirror 450 W. Stub end holder ROWELD P 630 B Pro is also available with data logger or CNC version.


Description		Temperature Control	Part Number

ROWELD® P630B Premium 400V 50/60 Hz.	315mm - 630mm	Electronic	00566
ROWELD® P24B Premium 400V 60Hz.	12" - 24"	Electronic	00989
ROWELD® P630B Premium CNC 400V 50/60 Hz. Machine Only	630mm	Electronic	00567

ROTHENBERGER ROWELD® P800B AT CMS INDUSTRIAL EQUIPMENT

ROTHENBERGER ROWELD® P800B Plastic Pipe Welding Machine Complete Ø 90mm – 355mm or ROTHENBERGER ROWELD® P12B (12 inch Standard Machine)

Butt fusion machine – field machine for the welding of pipes PE PP and PVDF Ø90 to Ø355 mm. SDR 41 – 7,4 Quick Couplers. 4 PCS. 355 mm. Main Clamp, of which 3. can be moved for easy welding fittings and flanges. Hardened piston rods. Weight 56,4 kg. Plan Planer with reversible knives and safety switch. 750 W.. Weight 22,5 kg. Heating element electronic 2500W. Weight 9,1 kg. Item no: 513.024 Digital control box for the heating element Heat-protected box for planer and heating element. Weight 9,6 kg. Hydraulic unit with rotary knob for pressure setting, switch between pressure and depressurized , and handle for driving. Cover for oil filling. 230V 370 W.. OD 100 mm. glycerin filled pressure gauge. 2 PCS. 230 V socket for wood and mirror. Weight 27,7 kg. Item no. 513.021 Tool – Transport case.


Description	mm	Temperature Control	Item Number

ROWELD® P355B 230V Complete	90mm - 355mm	Electronic	01512
ROWELD® P12B 230V Complete	5" - 12"	Electronic	10821

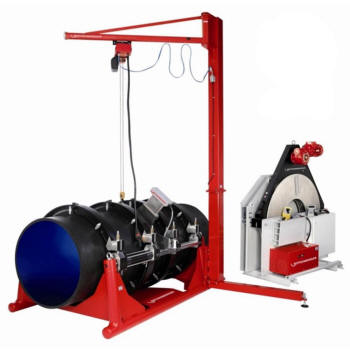

ROTHENBERGER ROWELD® P1200B AT CMS INDUSTRIAL EQUIPMENT

ROTHENBERGER ROWELD® P1200B Plastic Pipe Welding Machine Complete Ø 710mm – 1200mm

Butt fusion welding of PE, PP and PB pipes and fittings Ø 710 – 1200 mm all pressure stages and SDR series. This machine is for use in trenches, on site and in the workshop. Machine is sold complete with 710, 800, 900, 1000mm insert sets.

The ROWELD hydraulic type professional with infinite pressure adjustment, an easily legible manometer and pressure reservoir for welding according to DVS and other internationally valid guidelines and standards.

This set includes: Machine, hydraulic unit, trimmer, heating plate, reducing clamps, Flange Adaptor/Stub Holder and Lifting Hoist.


Description	mm	Temperature Control	Item Number

ROWELD® P1200B Professional	1200mm	Electronic	54274
Electric Hoist			54253
