WARRANTY

Jackman Fusion Equipment is safe, convenient, and dependable. All JAC-Series Welders are guaranteed with a two year warranty. Owner should store the instructions and refer to them before operation.

The factory will repair or replace the fusion tool, should the tool fail due to quality issues, within 2 years of the purchase date.

Any tools that have been misused will not be covered under the warranty.

JAC-063 Complete Set
Socket welding unit Ø 3/4" - 2"

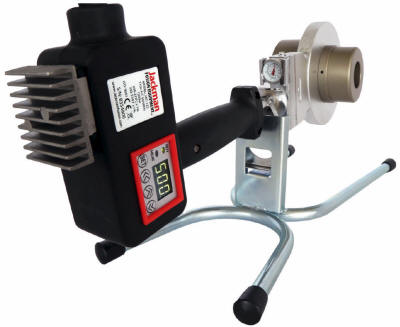

Jackman Fusion JAC-063 is a Manual Socket Fusion Welder for welding Socket Fusion style fittings in various materials including, HDPE, MDPE, PPR, PP, and PVDF. The welder is composed of a heating plate, digital temperature control display screen, and a comfortable nylon plastic handle shell. Digital Adjustable temperature Regulator (Factory Set at 500 Degree F). 110/120 Volt Power.
The JAC-063 IPS Complete Set provides you with the JAC-063 Welder along with all the tools and supplies you need to weld 3/4” IPS to 2” IPS.

Intended Use:

• Underground Utility Contractors
  working with (IPS Poly Pipe)

• Water, Natural Gas, Propane

• Industrial Waterworks

• Communication Duct


Features

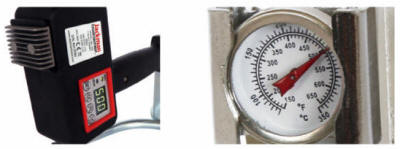

Analog Thermometer

Digital Adjustable Temperature Display

“RDY” and “HEAT” Indicator lamp

110/120 Volt Power


Specifications

Working Temperature : 392-534°F ± 1% (200-279° C ±1%)

Temperature Regulator : 500° F

Power Supply : 110/120 V (60) 50 Hz

Rated Watt : 800W

Working Range : 3/4" IPS - 2"IPS

Materials To Weld : HDPE, MDPE, PPR, PP, PB, PVDF

Set Weight : 35 lb
Welder Weight : 4 lb
Welder Dimensions (LxWxH) : 19" x 6" x 2.5"

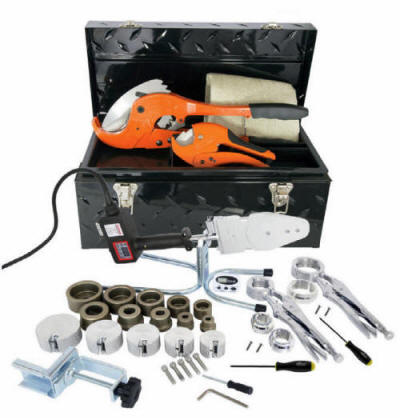

Jackman Socket Fusion Set Includes:

(Supplied with Fork Support Stand, Allen Wrench, and Pins for Sockets)

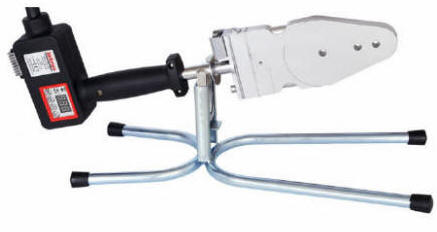

• Jackman Socket Fusion Welding Heating Iron
  (Supplied with Fork Support Stand, Allen Wrench, and Pins for sockets)

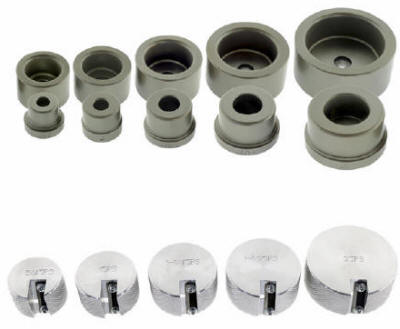

• Socket Heating Adapters: (3/4" IPS, 1" IPS, 1-1/4" IPS,
  1-1/2" IPS, 2" IPS)


• Chamfer Tool/ Depth Gauge: Combination (3/4" IPS, 1" IPS, 1-1/4" IPS, 1-1/2" IPS, 2" IPS)


• Cold Ring Combination Clamps: (1-1/4" IPS Pliers with 1" IPS and 3/4" IPS inserts) and (2" IPS Pliers with 1-1/2" IPS Inserts)


• Large 22" Metal Storage Tool Box


• Work Bench Mounting Clamp


• Insulated Cold Weather Heating Bag


• 2" Ratcheting pipe cutter


• 1-1/4" Ratcheting pipe cutter
   Fusion Timer

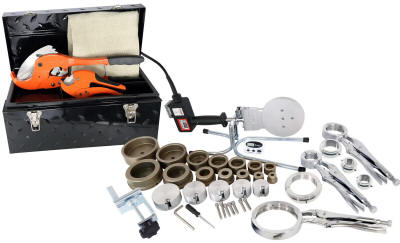

Jackman Fusion JAC-125 is a Manual Socket Fusion Welder for welding Socket Fusion style fittings in various materials including, HDPE, MDPE, PPR, PP, and PVDF. The welder is composed of a heating plate, digital temperature control display screen, and a comfortable nylon plastic handle shell. Digital Adjustable Temperature Regulator (Factory Set at 500 Degree F). 110/120 Volt Power. The JAC-125 IPS Complete Set provides you with the JAC-125 Welder along with all the tools and supplies you need to weld 3/4” IPS to 4” IPS.

Intended Use:

• Underground Utility Contractors
  working with (IPS Poly Pipe)

• Water, Natural Gas, Propane

• Industrial Waterworks

• Communication Duct


• Socket Heating Adapters: (3/4” IPS, 1” IPS, 1-1/4” IPS, 1-1/2” IPS, 2” IPS, 3” IPS, 4” IPS)

• Chamfer Tool/ Depth Gauges: (3/4” IPS, 1” IPS, 1-1/4” IPS, 1-1/2” IPS, 2” IPS, 3” IPS, 4” IPS)

• Cold Ring Combination Clamps: (1-1/4” IPS Pliers with 1” IPS and 3/4” inserts), (2” IPS Pliers with 1-1/2” IPS Inserts), (4” IPS Pliers with 3” IPS Inserts.)

• Large 22” Metal Storage Tool Box

• Work Bench Mounting Clamp

• Insulated Cold Weather Heating Bag

• 2” IPS Ratching Pipe Cutter

• 1-1/4” IPS Ratching Pipe Cutter

• Fusion Timer
