New Exact PipeBevel 220 E Pipe Cutting System

Exact PipeBevel 220 E

Exact PipeBevel 220 E at CMS Industrial Equipment Company

Stainless Steel Bevel Tips Pk

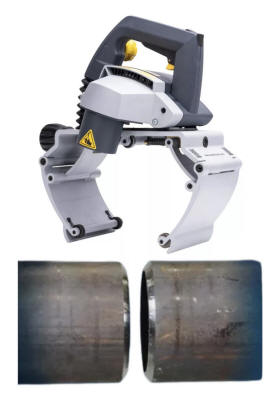

^{Exact PipeBevel 220 E} Portable pipe beveling system Ø 15 mm - 220 mm

The Exact PipeBevel 220 E Provides a simple, safe, and efficient solution for onsite pipe beveling. The 220E model features a compact design and supports beveling pipe walls up to 10 mm thick.

Professional Pipe Beveller for onsite welding applications.

The Exact PipeBevel 220E is a portable and lightweight pipe beveller that produces continuous good results for on-site pipe beveling applications. With this machine you will make easy, fast and consistent bevels to a variety of pipe materials of steels and stainless steels.

The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 25 mm – 220 mm (0.98”- 8.6”) and up with a maximum wall thickness of 10mm (0.39”).

The built-in stopper feature enables and makes it easy for the operator to make similar additional bevels to the same pipe outside diameter. This reduces the cycle times dramatically and ultimately improves workflow.

The cutting heads to the PipeBevel 220E are available in the most used bevel angles (30°, 37.5° and 45°). It is also possible to make different ‘tailored’ bevel angles if required. The cutting head is to be ordered separately due to the required varying bevel angle.

The cutting head of the beveller has 3 cutting tips, each of them having 4 cutting edges to rotate once becoming blunt. Thanks to this, you will have a prolonged beveller blade tip life. The cutting tips are also to be ordered separately.

The user interface of the machine is similar to Exact pipe saws, which makes it easy for the operator to adapt after cutting a pipe with any Exact pipe saw.

Important: Bevel tips and the cutting head are not included by default with the machine. Bevel tip sets (3 pieces) are sold separately from the cutting head.

Technical details

Product number 7048121
Pipe cutting capacity (OD) 15 mm - 220 mm
Pipe material Steel, Stainless/Inox, Aluminum
Different Bevel Angles 30° - 37.5° - 45°
Weight 14.7 lb (6.7 Kg)

Set Includes:

Exact PipeCut System Shoulder Bag
Exact PipeBevel 220 E motor unit
Pipe Supports 2
5 mm Allen wrench
Operating instructions


Description	lbs.	No.	$ Price	Add to Cart

Exact PipeBevel 220 E	14.00	7048121	$3,800.00	Buy now
Cutting Head 30°	1.00	7048130	$600.00	Buy now
Cutting Head 37.5°	1.00	7048123	$600.00	Buy now
Cutting Head 45°	1.00	7048131	$600.00	Buy now
Stainless Steel Bevel Tips Pk	1.00	70104504	$250.00	Buy now

Exact – Ground-breaking Solutions for Pipe Cutting and Finishing

The Exact system: innovations that render pipe handling effortless, accurate and fast
Over the last ten years, Exact has developed a number of modern tools for pipe cutting, finishing and processing. Innovative products from Exact raise the pipe working efficiency to an entirely new level.

The Exact system is suitable for all pipes and materials

Exact pipe cutters are suitable for all kinds of pipe materials; a single machine allows cutting pipes of greatly differing sizes. Pipe cutting is significantly faster as compared to traditional methods. The resulting surfaces are precise and of uniform quality – the pipes are ready for joining right away.
Exact pipe cutters can be used almost anywhere, since in most countries they are approved for indoor use – for example, as compared to angle grinders, the fire hazards are substantially lesser.
Exact pipe cutters are easy to move around and effortless to use, for it is not necessary to support the device while cutting. Since the cutting is fast and does not require strength, the physical work strain is very low.
The ergonomic design of Exact pipe cutters allows avoiding accidents at work and the related absences. Moreover, the risk of developing work strain-related maladies is reduced.

Efficiency and user-friendliness benefit the entire company

Quick and easy-to-use Exact pipe cutters significantly improve work efficiency. The results are of higher quality and achieved faster as compared to former methods.
The Exact products are designed to be long-lived and easy to maintain. It is quite usual for pipe cutters commissioned ten years ago to still be in daily use.
Everybody wins: the employees feel better at work, the work progress is accelerated, and improved productivity is good for company profits.

World’s best in product design 2013

In 2013, the Pipecut 220E, 280E, and 360E pipe cutters by Exact Tools won the internationally prestigious Red Dot Design award. The award is granted to technically advanced and operationally superior design, and the competition involved nearly 5,000 products from all over the world.
Exact pipe cutters represent sustainable development: upon pipe processing, the tools’ power consumption is only 15% of that of an angle grinder, and all tool components are recyclable.
Exact Tools – better results with less work.
