ROWELD® P315W AT CMS INDUSTRIAL EQUIPMENT

ROWELD® P315W AT CMS INDUSTRIAL EQUIPMENT

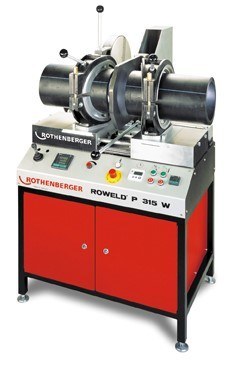

ROWELD® P315W
workshop machine for the welding of pipes PE PP and PVDF Ø90 to Ø315 mm.


Main Clamping jaws wide, 315 mm. for welding segments up to 22,5 °
Hydraulics 400 W. – Planner 700 W. – Welding Mirror 3000 W.. Weight complete machine 523 kg. Complete set reducer inserts, 90 110 125 140 160 180 200 225 250 280 mm. ( 1 set = 4 wide halves. ) Machine comes complete running including pressure characteristic. item no. 513.001
Optional:
 315 mm. Left narrow item no. 513.102
 315 mm. Left narrow item no. 513.103
Insert the narrow downsizing hills 90 110 125 140 160 180 200 225 250 280 mm. ( 1 set = 2 halves. ) item no. 513.104
Flange clamp item no. 513.105


Description Part Number Price

 ROWELD® P315W Complete 400V

90mm - 315mm 54800 $50,739.90
 ROWELD® P315W CNC Complete 400V

90mm - 315mm 55320 $62,983.90
Flange Adapter

  55880 $1,225.90




ROWELD® P630W AT CMS INDUSTRIAL EQUIPMENT

ROWELD® P630W
Plastic welder workshop machine for the welding of pipes PE PP and PVDF Ø315 to Ø630 mm.

Main Clamping jaws wide, 630 mm. for welding segments up to 22,5 ° Hydraulics 2250 W. – Planner 3000 W. – Welding Mirror 14000 W.
Complete set reducer inserts, 315 355 400 450 500 560 mm. ( 1 set = 4 wide halves. )
Machine comes complete running including pressure characteristic.
Optional :
Main Clamping 630 mm. narrow
Complete set of narrow reduction trays 315 355 400 450 500 560 mm. ( 1 set = 4 small halves. )
Stub end holder


Description
mm
Temperature
Control
Part Number Price

 ROWELD® P630W complete

315mm - 630mm Electronic

54215 $166,910.90












ROWELD® P1000W AT CMS INDUSTRIAL EQUIPMENT


ROWELD® P1000W
Plastic pipe welding unit Ø 560mm – 1000 mm.

Main Clamping jaws wide, 1000 mm. for welding segments up to 22,5 °
Hydraulics 2250 W. – Planner 3000 W. – Welding Mirror 28000 W..
Complete set reducer inserts, 560 630 710 800 900 mm. ( 1 set = 4 wide halves. )
Machine comes complete running including pressure characteristic.
Optional :
Clamping jaws with reduction trays for the production of T-pieces Ø450 to Ø800 mm. 90°
Clamping jaws with reduction trays for the production of T-pieces Ø450 to Ø800 mm. 30 – 45°


Description
mm
Temperature
Control
Item Number Price

 ROWELD® P1000W 230V complete 560mm - 1000mm Electronic

53970 PLEASE CALL FOR PRICING
