ROWELD® hydraulic concept


Hydraulic units for butt welding machines

The ROWELD® hydraulic aggregate is available in a basic ECO and Professional version. The premium aggregate is divided into Premium, Premium PLUS and Premium CNC capacities.

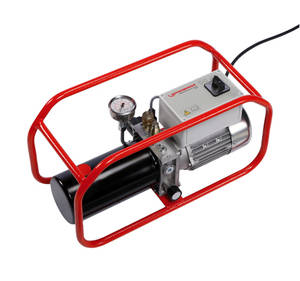

Rothenberger ROWELD ECO at CSC Industrial Corporation
ROWELD® ECO
Basic version of hydraulic aggregate for butt welding machines Ø 160 - 315 mm

Particularly suitable for use outside of the pressure pipe line construction, with continuously adjustable working pressure and constant welding pressure during the welding cycles.

SDR 41 - 11
For use on building sites, in pipe trenches, on pipe bridges and in the workshop.
For the welding of pipes and fittings within the median pressure range (SDR 41 - 11) made of PE and PP.
The ROWELD® basic unit Eco is especially recommended for welding pipes with a medium wall thickness. The use of the ROWELD® hydraulic systems model CNC is not possible.

Power supply: 230V – 250W – 2,1A
Rotary speed: 1330 min-1
Pump capacity: 1,2 l/min
Oil tank capacity: 2 l
Pressure range: 4 - 75 bar
Dimensions (LxWxH): 550 x 270 x 300 mm
Prootection / Protection class: I / IP54
Weight: 17 kg



Description
Kg.
230 V
50/60 Hz

 ROWELD® Hydraulic Unit ECO

 17.00 55111

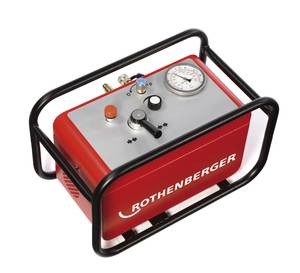

Rothenberger ROWELD Professional at CSC Industrial Corporation


ROWELD® Professional
Electro-hydraulic control for butt welding machines Ø 160 - 630 mm

Particularly suitable for use outside of the pressure pipe line construction, with continuously adjustable working pressure and constant welding pressure during the welding cycles.

SDR 41 - 11
For use on building sites, in pipe trenches, on pipe bridges and in the workshop.
For the welding of pipes and fittings within the median pressure range (SDR 41 - 11) made of PE and PP.

Power supply: 230V – 370W – 2,6A
110/115V – 370W – 5,2A
Rotary speed: 2800 min-1
Pump capacity: 2,8 l/min
Oil tank capacity: 0,7 l
Pressure range: 0 - 100 bar
Dimensions (LxWxH): 500 x 330 x 430 mm
Weight: 31 kg


Description
Kg.
230V 115V

 ROWELD® Professional

31.00

55115 55116











Rothenberger ROWELD Premium at CSC Industrial Corporation



ROWELD® Premium
Hydraulic unit for butt welding machines Ø 160 - 630 mm

SDR 41 - 7,4
For use on building sites, in pipe trenches, on pipe bridges and in the workshop. For welding of pipes and fittings in all pressure ranges (SDR 41 - 7.4) made of PE, PP and PVDF.
The ROWELD® plastic pipe welding machines are especially recommended for the welding of thick walled pipes.

The welding parameters according to DVS, as well as other international standards and guidelines, can be recorded and stored quickly and precisely.

In addition to the logging box, integrate in the premium hydraulic control, for quick and precise storage and logging of the welding parameters according to DVS and other valid international guidelines and norms. Simple transfer of data through USB.

  • Temperature control
  • Digital pressure display
  • Presure hold function
  • Logging system
  • Automatic parameter calculation
  • Touch screen
  • 3.5" colour display
  • Menu language multilingual
  • USB-port
Hydraulic unit P 160-200 B P 250-355 B P 500-630 B
Power supply 230V-370W / 2,5/2,9A 230V-550W / 4,17A 400V-1100W / 2,75A
  110/115 V-370W / 5,2A
Rotary speed 50Hz-1380min-1 / 60Hz-1650min-1 50Hz-1370min-1 / 60Hz-1650min-1 50Hz-1400min-1 / 60Hz-1680min-1
Pump capacity 1,35l/min 2,2 / 2,6l/min 4,5 / 5,4l/min
Oil tank capacity 1l 1l 1l
Pressure range 4 - 80bar 4 - 135bar 4 - 135bar
Dimensions (LxWxH) 540 x 310 x 433mm 540 x 310 x 433mm 540 x 310 x 433mm
Protection / protection class I / IP54 I / IP54 I / IP54
Weight 29kg 33kg 36kg




Model P 160 B - P- 200 B P 250 B - P 355 B P 500 B - P 630 B

 230 V 55092

55073
 110 V   55178 53295
 400 V     53294

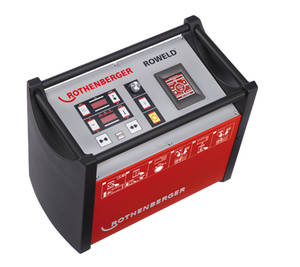

Rothenberger ROWELD Premuim CNC at CSC Industrial Corporation



ROWELD® Premium CNC
Hydraulic unit for butt welding machines Ø 160 - 630 mm

SDR 41 - 7,4
For use on building sites, in pipe trenches, on pipe bridges and in the workshop. For welding of pipes and fittings in all pressure ranges (SDR 41 - 7.4) made of PE, PP and PVDF.
The ROWELD® plastic pipe welding machines are especially recommended for the welding of thick walled pipes.

Electric-hydraulic control ROWELD® Premium, plus the logging system ROWELD® DATALINE 2.0, plus path sensor system, adds up to the ROWELD® Premium CNC control system – for precise control and compliance from welding parameters according to defined specifications.

Depending on the customer wish and the desired ROWELD® butt welding system – the ROWELD® Premium CNC control can be used in fully automatic units with automatic ejected heating plate as well as in semiautomatic units with manual heating plates removal – after an acoustic signal.

Additionally with CNC- control, integrated in the premium hydraulic control, with touch-screen panel for quick and precise storage and logging of the welding parameters according to DVS and other valid international guidelines and norms with automated welding cycles and method surveillance.

  • Temperature control
  • Digital pressure display
  • Pressure hold function
  • Logging system
  • Position sensor
  • Automatic parameter calculation
  • CNC control
  • Touch screen
  • 3.5" color display
  • Menu language multilingual
  • USB port
Hydraulic Unit P 160-200 B P 250-355 B P 500-630 B
Power Supply 230V-370W / 2,5/2,9A 230V-550W / 4,17A 400V-1100W / 2,75A
  110/115 V-370W / 5,2A
Rotary Speed 50Hz-1380min-1 / 60Hz-1650min-1 50Hz-1370min-1 / 60Hz-1650min-1 50Hz-1400min-1 / 60Hz-1680min-1
Pump Capacity 1,35l/min 2,2 / 2,6l/min 4,5 / 5,4l/min
Oil Tank Capacity 1l 1l 1l
Pressure Range 4 - 80bar 4 - 135bar 4 - 135bar
Dimensions (LxWxH) 540 x 310 x 433mm 540 x 310 x 433mm 540 x 310 x 433mm
Protection Class I / IP54 I / IP54 I / IP54
Weight 29kg 33kg 36kg




Model P 160 B - P- 200 B P 250 B - P 355 B P 500 B - P 630 B

 230 V 53768

53769
 110 V   53772 54797
 400 V     54796
