Rothenberger ROWELD®  ROCUT® UKS 160 / 355, ROWELD® HE Heating plates and ROWELD® P 125


ROTHENBERGER ROWELD®

Previous PagePrevious Page


Rothenberger ROCUT 110 & 160 at www.cmstools.us
Rothenberger ROCUT 110 & 160 at www.cmstools.us
ROCUT® 110 & ROCUT® 160

Cutting and chamfering tool for right-angled cutting and chamfering (15°), Ø 32 - 160 mm
For use with clamping sets Ø 32 - 100 mm, without internal deburrer with standard cutter blade shaft and cutter blade No. 55029


Key Features

  • Only one tool required for cutting, chamfering and deburring
  • Extremely long service life with optimum cutting geometry
  • Special accessories for PE, PP, PEX, PB and sound-insulated pipes
  • Uniform chamfering of the entire pipe circumference
  • Continuously adjustable pipe clamping pressure
  • Integrated internal deburrer is stored in the handle
  • Pipe cutting also possible without chamfering, as cutter blade shaft can be mounted with 180° offset

Description Part Number Price

 ROCUT® 110 Set - Working range 50, 75, 110 mm

55035 $550.90
 ROCUT® 160 Working range 110, 125, 160 mm

55063 $673.90

Rothenberger ROCUT UKS 160/355 at CMS Industrial Equipment

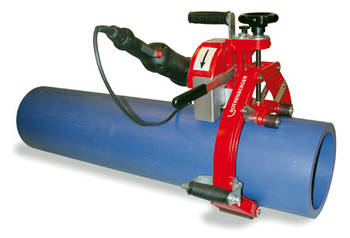

ROCUT® UKS 160 / 355
High-performance orbital circular saw Ø 160 - 355 mm.

For cutting of plastic pipes made of PE, PP and PVC.
For use on the building site or in the workshop.

  • Right-angled cuts with no misalignment
  • Efficient and economical operation with high cutting speed
  • Safe operation with saw blade guard
  • Optimum pipe centring

Voltage: 230 V 50 / 60 Hz
Power: 1750 W
Outer pipe diameters: 160 mm - 355 mm
Smin.: 8 mm
Smax.: 40 mm


Description
lbs.
230 V
50/60 Hz
Price

 ROCUT® UKS 160 / 355
 complete with HM saw blade, without carrier box

30.00 1000000532 $3,868.90
 Spare HM saw blade 180 x 30 mm 1.50 55505 $184.90
 Carrier box 700 x 350 x 500 mm 38.00 1200000526 $604.90

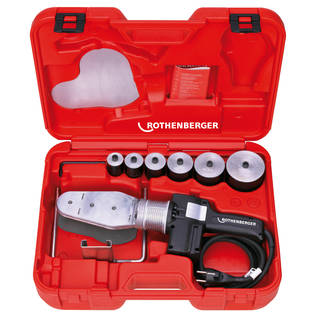

Rothenberger ROWELD P 63 S-6 Sword at CMS Industrial Equipment

Rothenberger ROWELD P 63 S-6 Sword at CMS Industrial Equipment



ROWELD® P 63 S-6 Sword
Socket welding unit Ø 20 - 63 mm

Socket welding unit for use with heating spigots and heating sockets Ø 20 - 63 mm with three simultaneously usable combinations for welding sockets, pipes and fittings up to Ø 63 mm.

  • Increased flexibility and combination options for every day use
  • Long service life and according to DVS regulations
  • All important information at a glance
  • Safe operation with the temperature control as per DVS regulations
  • Light and handy for fatigue-free use
  • Simple operation even in confined spaces
  • Unit has an integrated and retractable floor stand

Power: 800 W
Model: Thermostatic or electronically controlled
Pipe diameter: For sockets, pipes and fittings from Ø 20 - 63 mm
Voltage: 230 V 50 / 60 Hz or 110 / 115 V 50 / 60 Hz




Descripción
mm
Type Item No. Price

 P 63 S-6 Set 20, 25, 32, 40, 50, 63 Electronic
800 Watts

11245 $613.90











Rothenberger ROWELD P 125 at CMS Industrial Equipment

ROWELD® P 125
ROWELD® P 125
Socket welding unit for use with heating spigots and heating sockets Ø 16 - 125 mm
  • With three simultaneously usable welding combinations for free-handed working or workbench assembly using table mounting clamp
  • Process reliability with the temperature control according to DVS, CEN and ISO standards
  • Electronic temperature control and monitoring, as well as prevention against unintentional temperature adjustment
  • Saves time and money with quick-exchange system for heating plates
  • Optimum temperature distribution over the entire working area
  • 4 holes for mounting of heating spigots and heating sockets

With high-quality non-stick Teflon coating, long service life and manufactured according to DVS regulations.

Power: 1300 W
Voltage: 230 V / 50/60 Hz
Control Model: electronically


Decription Power / Watt mm Control / Model Weight in kg 230V / 50/60Hz Price

P 125 1300 16 - 125 electronic 3,1 55322 $957.90

Heating spigots / heating sockets

mm Weight in kg No.

16 0,06 55585
17 0,06 55586
18 0,08 55587
19 0,08 55588
20 0,08 55589
25 0,1 55590
32 0,17 55591
40 0,26 55592
50 0,37 55593
63 0,6 55594
75 0,89 55595
90 1,33 55596
110 2,07 55597
125 2,33 55598



Accessories

Description Weight in kg No.

Table mounting clamp 0,45 55524
Carry case 4,7 55555
Floor stand 0,44 55539
Socket pin for heating spigot 0,01 55549
Adaptor plate for butt welding ROWELD® P 125 Ø 160 mm
(1 set = 2 pieces) non-stick Teflon coating
1,15 55536
