Riexinger BSM 450
Plastic pipe band saw Ø 50 - 450 mm
The BSM 450 electric band saw is specially designed for the precise cutting of
plastic pipes in the diameter range from 50 mm to 450 mm.
The machine impresses with its robust and torsion-resistant steel construction,
which is used for both the machine stand and the saw frame. With a
well-thought-out saw blade deflection that runs on ball bearings and a
spring-supported blade tensioning device, the BSM 450 ensures maximum cutting
precision and durability.
All advantages at a glance
Robust construction: machine stand and saw frame made of torsion-resistant
steel.
Precise deflection: saw blade deflection with ball bearings for smooth
operation.
Angle cuts: Pivoting saw bow for angle cuts from 0° to 45° (infinitely
adjustable).
Safety: ON-OFF switch with motor protection and brake electronics for safe
working. |
|
 |

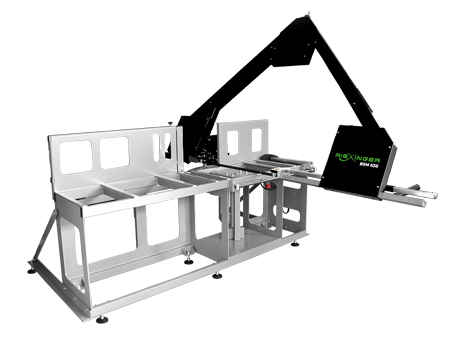

Riexinger BSM
630
Plastic pipe
band saw Ø
200 - 630 mm
The BSM 630 from Riexinger is the cost-effective, robust
solution for manual sawing of plastic pipes with a diameter of 200 mm to 630 mm.
Thanks to the continuously pivoting saw arm, angle cuts of up to 45° are
possible. Both the machine stand and the saw frame are made of a
torsion-resistant steel construction. The ball-bearing saw blade deflection
ensures that the saw blade runs easily and precisely and the spring-supported
blade tensioning device enables the saw blade to be changed easily. Safety is
ensured by a two-hand ON-OFF switch with motor protection and brake electronics.
All advantages at a glance
Machine stand and saw frame in robust, torsion-resistant steel construction
Saw band deflection with ball bearings
Belt tensioning device with spring support
Angle cuts 0°- 45° by swiveling saw arm to one side
Two-hand ON-OFF switch with motor protection and brake electronics
|
|
 |
Riexinger BSM
630 RW
Plastic pipe
band saw Ø
200 - 630 mm
The BSM 630 RW offers you almost all options for manual processing of plastic
pipes in the sawing range up to 630 mm. Exact setting options for angle and
radius cuts from 0° to 45° using a scale, in conjunction
with the high saw band speed, ensure optimal cutting quality and always a
perfect result.
All advantages at a glance
Angle and radius cuts from 0° to 45° possible
Precise adjustment options for angle and radius cuts
High saw blade speed for optimum cutting quality
Precision guides for a straight cut
|
|
 |
Riexinger
BSM 631
Plastic pipe band saw Ø 400 - 800 mm
45° pivot-able (both sides). For precise and perfect, right-angled
cuts from PE, PP, PB, PVDF and PVC pipes and fittings.
Electric band saw with continuously adjustable
feed and cutting depth limitation for plastic pipes. The saw frame can be
swiveled to both sides, enabling angle cuts from -45° to 45° for the production
of T-pieces* and segment bends*.
Key Features
Double-sided saw frame bearing (angle cuts from 0° – 45° on both sides)
Mitre on both sides for producing T-pieces and segments
Precise cutting path thanks to precision guides
Continuously adjustable feed with electric drive
Cutting depth limitation
Angle scale for reading the degree setting and angle setting on the front
Work piece support
Laser cut detection
*
only with the same pipe diameter
|
|
 |
Riexinger BSM 800
Plastic pipe band saw Ø 400 - 1200 mm
45° pivot-able (both sides). For precise and perfect, right-angled
cuts from PE, PP, PB, PVDF and PVC pipes and fittings
Electric band saw with laser cut detection and cutting depth
limitation for plastic pipes. The saw frame can be swiveled to both sides,
enabling angle cuts from -45° to 45° for the production of T-pieces* and segment
bends*.
Key Features
Double-sided saw bow guide, all cuts 0°- 45°
Bevel on both sides for the simple manufacturing of T-pieces and
segments
Precision guidance guarantees a precise cutting course
Feed with electrical drive is continuously adjustable
0° - 45° continuously pivot-able saw arm
Cutting depth limit
Angle scale for reading level adjustment and angle determination on
the front side
Laser cut identification
* only with the same pipe diameter
|
|
 |
Riexinger BSM 1000
Plastic pipe band saw Ø 400 -
1600mm
45° pivot-able (both sides). For precise and perfect, right-angled
cuts from PE, PP, PB, PVDF and PVC pipes and fittings.
Electric band saw with laser cut detection and cutting depth
limitation for plastic pipes. The saw frame can be swiveled to both sides,
enabling angle cuts from -45° to 45° for the production of T-pieces* and segment
bends*.
Key Features
Double-sided saw bow guide, all cuts 0° - 45°
Bevel on both sides for the simple manufacturing of T-pieces and
segments
Precision guidance guarantees a precise cutting course
Feed with electrical drive is continuously adjustable
0° - 45° continuously pivot-able saw arm
Cutting depth limit
Angle scale for reading level adjustment and angle determination on
the front side
Laser cut identification
* only with the same pipe diameter
|
|
