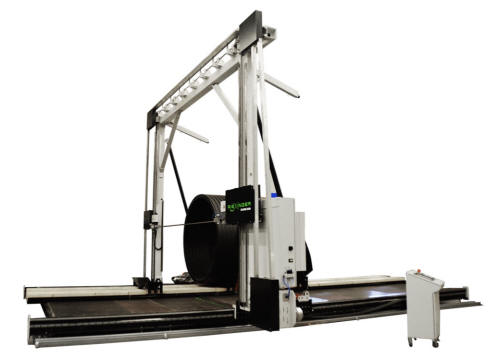

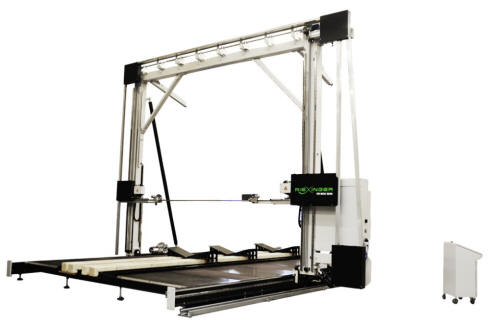

Riexinger Large Plastic Pipe Saw CMS Industrial Equipment

GR-BSM 1200 – 4600

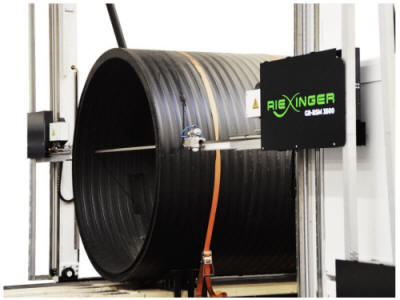

The innovative large pipe sawing system for plastic pipes
Currently, most water, sewage and rainwater transport systems consist of plastic pipes with a diameter of up to 4.6m. Processing pipes with such large diameters requires exceptional precision and compliance with safety regulations.

RIEXINGER large pipe saws are designed to meet the requirements of modern production.
Almost the entire cutting cycle is computer-controlled, and employee involvement is limited to monitoring the working machine.

All benefits at a glance
-Innovative design with movable saw bow and open working area
-Automatic cutting of segments without moving the pipe
-The low-positioned working platform makes loading and unloading considerably easier
-Easy replacement of the saw blade without a lift or ladder
-Precise adjustment of the cutting position without having to move the pipe
-Precise cutting at various angles

A new standard in the large-diameter plastic pipe sector
Compared to conventional solutions for sawing large diameter pipes, the use of Riexinger saws results in time savings of up to 50-60%. The sawing is characterized by a precise finish of the machined planes, which require no further machining and guarantee a perfect fit of individual elements. Thanks to the possibility of using different types of saw bands, Riexinger saws can perfectly process any type of material with a wall thickness from a few mm to over 140 mm.

All large pipe saws are equipped with effective safety devices as standard:

Emergency switch,
Overload modules for drives and electronic components,
electronic brake of the saw band,
Laser projection of the cutting line etc.

Each saw is operated via a large control panel with touch screen. The operator sets the parameters for the subsequent cutting steps step by step by selecting the corresponding symbols.
Saw blade change: simple, safe and fast
RIEXINGER sets new standards in the field of saw blade replacement, both in terms of safety and operating time. Normally, replacing the saw bands in a large saw is a time-consuming and complicated process that requires additional ladders and suitable tools. With Riexinger saws, the arm can be lowered without any problem, without the need for an external crane or lift.

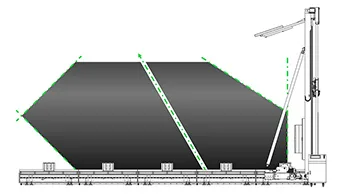

Perform almost any cut
With the help of this sawing system, any required cut can be produced cost-efficiently. A variety of contour cuts are possible without having to move or rotate the tube. This results in a previously unattainable accuracy and quality as well as an enormous time saving.

Standard cuts which are included in the scope of delivery of every large pipe saw

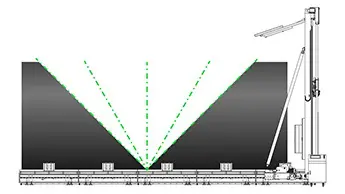

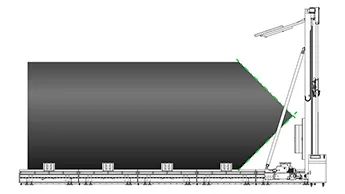

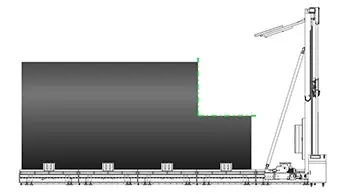

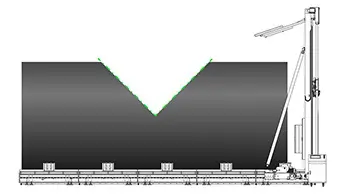

Infinitely adjustable angle cut in the range from 45° to 135	V-cut on the main pipe to create T-pieces	V-cut at the outlet pipe for the production of T-pieces

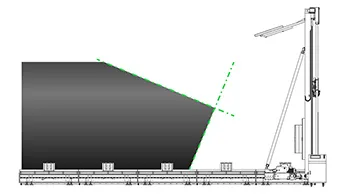

90° straight cut for cutting pipes to length or for pipe end machining	67.5°/22.5° cut on the outlet pipe to create Y-pieces	90° cross section
Even more flexibility with additional optional cutting options

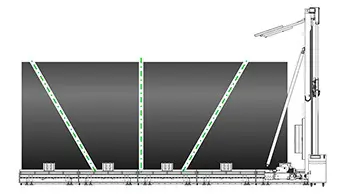

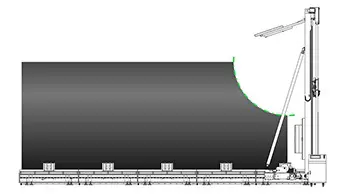

Creation of flexible Y-pieces with variable angle in main and outlet pipe	Radius cuts on the outlet pipe	Programmable cutting sequences that can be stored as so-called recipes
	Individually configurable cutting sequences for every application

Technical data

Dimensions and weight

	GR-BSM 1200	GR-BSM 2500	GR-BSM 3500	GR-BSM 4600
Length:	8,400 mm	8,400 mm	10,600 mm	12,600 mm
Width:	5,000 mm	6,600 mm	7,800 mm	8,900 mm
Height:	3,000 mm	4,300 mm	5,300 mm	6,400 mm
Weight:	5,000 kg	7,000 kg	9,000 kg	12,000 kg
Sawing range:	315 – 1,200 mm	630 – 2,500 mm	630 – 3,500 mm	630 – 4,600 mm
Further variants and sizes on request.

Electrical connection

	GR-BSM 1200	GR-BSM 2500	GR-BSM 3500	GR-BSM 4600
Operating voltage:	480 V
Frequency:	50/60 Hz
Fuse:	32 A
Connected load:	20 kW
Connected load main drive:	5,5 kW width overload protection

Scope of delivery

The following is included in the scope of delivery:

1x basic machine “GR-BSM”

1x Control panel

1x operating manual

additionally selected options and equipment
